SKU:
AMU864CCHF

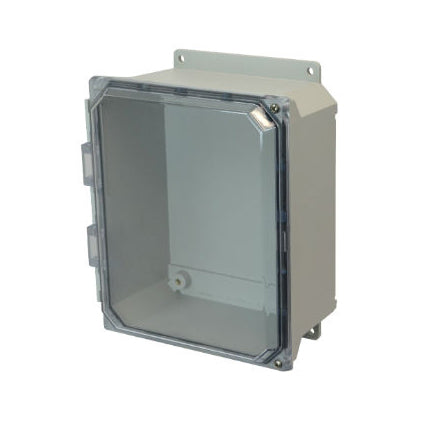

8x6x4 NEMA 4X Fiberglass Enclosure Clear Hinged Screw Cover Flange Mount
Shipping calculated at checkout.
8x6x4 NEMA 4X Fiberglass Enclosure Clear Hinged Screw Cover Flange Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
8x6x4 NEMA 4X Fiberglass Enclosure Clear Hinged Screw Cover Flange ...
$88.75
Unit price
/
Unavailable
Description
Description
Allied Moulded Products has been in the fiberglass field for over 55 years. Secure hinge pin keeps door attached during maintenance or box use. This enclosure is part of Allied Moulded's AMU series. Features a hinged screw cover. Made of fiberglass reinforced polyester, this enclosure is NEMA 4X rated.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU864CCHF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 8 inch
Standard Weight (lbs): 4
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339952534
