SKU: AMU864CCLF

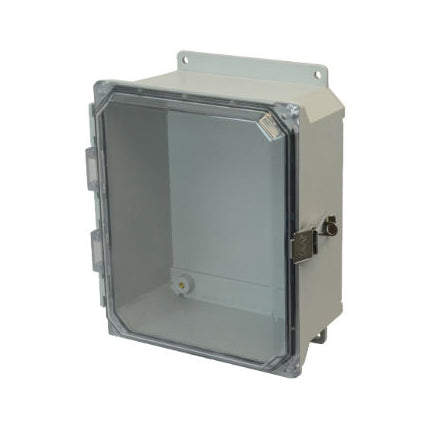

8x6x4 NEMA 4X Fiberglass Enclosure Quick-Release Latch Clear Hinged Cover Flange Mount

Shipping calculated at checkout.
Request a Quote

Description
Allied Moulded Products has been in the fiberglass field for over 55 years. Unlike metal enclosures, this box is corrosion resistant, lightweight, easy to modify, and affordable. Flange mount pattern retrofits competition. Features a quick release latch hinged cover. This enclosure is part of Allied Moulded's AMU series.

Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU864CCLF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 8 inch
Standard Weight (lbs): 4
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339952558
