SKU:
AMU864LW

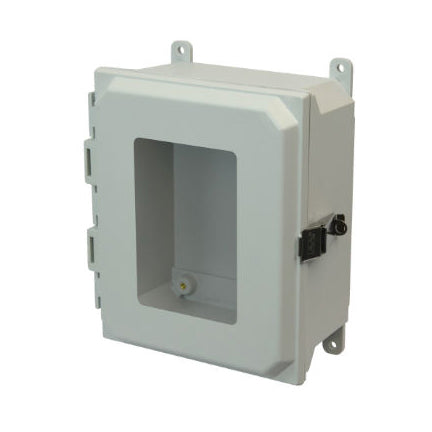

8x6x4 NEMA 4X Fiberglass Enclosure Quick-Release Latch Hinged Cover Window Foot Mount
Shipping calculated at checkout.
8x6x4 NEMA 4X Fiberglass Enclosure Quick-Release Latch Hinged Cover Window Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
8x6x4 NEMA 4X Fiberglass Enclosure Quick-Release Latch Hinged Cover...
$109.09
Unit price
/
Unavailable
Description
Description
Made of fiberglass reinforced polyester, this enclosure is NEMA 4X rated.300 Series stainless steel external hardware. Available with a standard or clear cover.Features a quick release latch hinged cover. This enclosure is part of Allied Moulded's AMU series.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU864LW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 8 inch
Standard Weight (lbs): 4
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339952664
