SKU:
AM864R
8x6x4 NEMA 4X Fiberglass Enclosure Raised Lift-Off Screw Cover
Shipping calculated at checkout.
8x6x4 NEMA 4X Fiberglass Enclosure Raised Lift-Off Screw Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

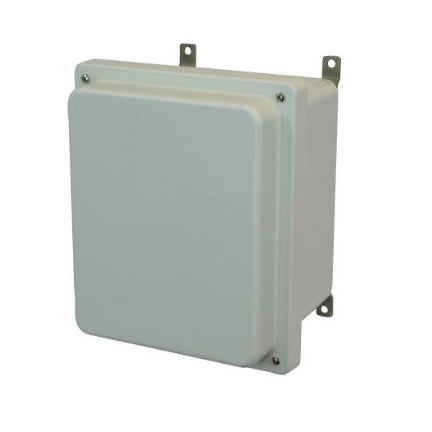

8x6x4 NEMA 4X Fiberglass Enclosure Raised Lift-Off Screw Cover
$68.46
Unit price
/
Unavailable
Description
Description
This enclosure is part of Allied Moulded's AM-R series. Enclosures are available with clear polycarbonate windows, pushbutton holes and more. Call us for any customizations you don't see available. Ultraguard reinforced fiberglass is formulated to resist effects of UV exposure, plus discoloration and yellowing. Features a lift-off screw cover. Comes standard in a light gray color. Other colors available - call for assistance.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM864R
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 8 inch
Standard Weight (lbs): 6
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339908876
