SKU: AM3PB

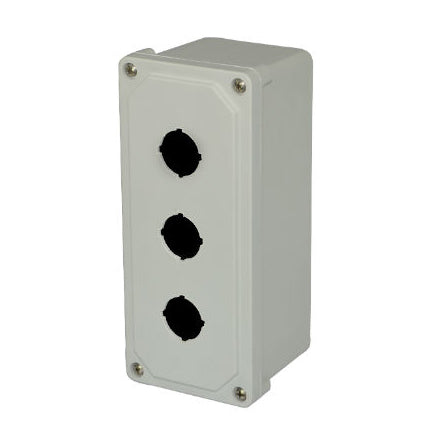

9x4x3 NEMA 4X INLINE PB Fiberglass Enclosure Lift-Off Screw Cover 3 PB Cutouts 30.5MM

Shipping calculated at checkout.
Request a Quote

Description
Ultraguard reinforced fiberglass is formulated to resist effects of UV exposure, plus discoloration and yellowing. This enclosure is part of Allied Moulded's AM series. Features a lift-off screw cover. Fiberglass electrical enclosures are not only easier to use and modify than metal enclosures. They also are lighter, resist corrosion, and maintain seal integrity. This enclosure has a NEMA 4X rating for indoor and outdoor use.

Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM3PB
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels
Size: 9 inch
Standard Weight (lbs): 2
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339910039
