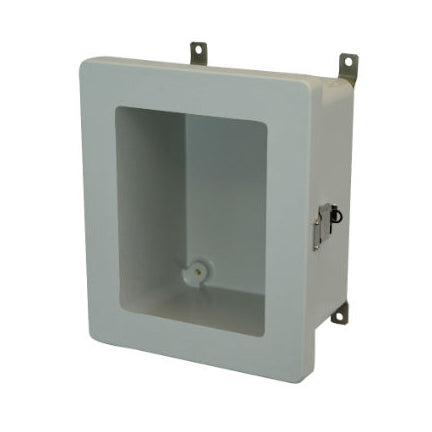

This enclosure is part of Allied Moulded's AM series. The NEMA 4X rating means this enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion, and formation of ice outside the enclosure. All enclosures are tested regularly to make sure they meet strict UL and CSA specifications. Various sizes and accessory options available for your different enclosure needs. Features a snap latch hinged cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1084LW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Gasket Material: Closed Cell Neoprene
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvannealed Back Panel: PG108 Keylock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT8
Size: 10 inch
Standard Weight (lbs): 6
Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13
UPC Code: 85339840060
