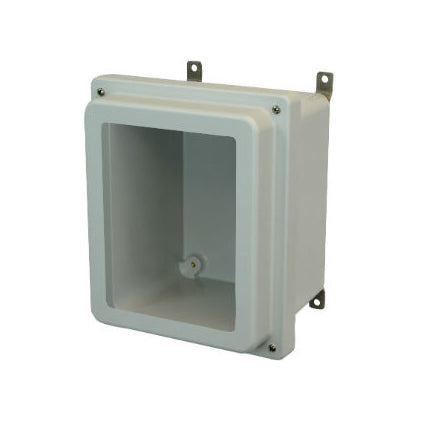

10x8x4 NEMA 4X Fiberglass Enclosure Raised Lift-Off Screw Cover Window
Shipping calculated at checkout.
10x8x4 NEMA 4X Fiberglass Enclosure Raised Lift-Off Screw Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
10x8x4 NEMA 4X Fiberglass Enclosure Raised Lift-Off Screw Cover Window
$129.49
Unit price
/
Unavailable
Description
Description
Allied enclosures are made from a unique ULTRAGUARD formulation of fiberglass reinforced polyester. They are also resistant to extreme temperatures and are designed with flame retardant properties. Features a lift-off screw cover. All Allied Moulded enclosures are rated for indoor and outdoor use. This enclosure is part of Allied Moulded's AM-R series.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1084RW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Gasket Material: Closed Cell Neoprene
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvannealed Back Panel: PG108 Aluminum HFP: HFP108 Keylock Kit: AMKEYLOCKRC Keylock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT8
Size: 10 inch
Standard Weight (lbs): 7
Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13 CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13
UPC Code: 85339840121
