SKU:
AM1086LW

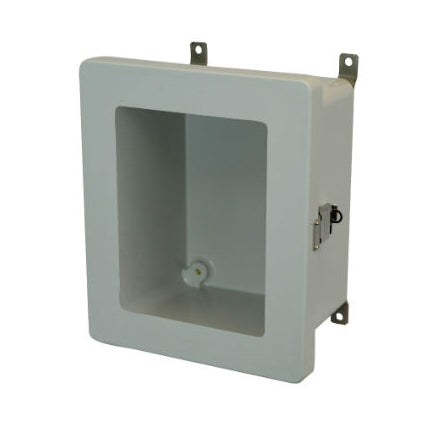

10x8x6 NEMA 4X Fiberglass Enclosure Quick-Release Latch Hinged Cover Window
Shipping calculated at checkout.
10x8x6 NEMA 4X Fiberglass Enclosure Quick-Release Latch Hinged Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
10x8x6 NEMA 4X Fiberglass Enclosure Quick-Release Latch Hinged Cove...
$132.47
Unit price
/
Unavailable
Description
Description
They are also resistant to extreme temperatures and are designed with flame retardant properties. This enclosure is part of Allied Moulded's AM series. Features a snap latch hinged cover. Allied boxes are easy to mount on a wall, machine, even a pole (with pole mounting kit)!Additionally, fiberglass is a fraction of the cost of heavy and difficult to use stainless steel enclosures.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1086LW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Gasket Material: Closed Cell Neoprene
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvannealed Back Panel: PG108 Keylock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT8
Size: 10 inch
Standard Weight (lbs): 6
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339910930
