SKU:
AM1086RL

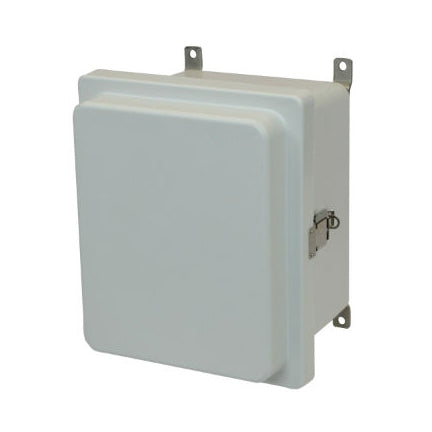

10x8x6 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hinged Cover
Shipping calculated at checkout.
10x8x6 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hinged Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
10x8x6 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hing...
$99.33
Unit price
/
Unavailable
Description
Description
Our fiberglass boxes are easy to customize, punch, drill, and saw. This enclosure is part of Allied Moulded's AM-R series. Features a snap latch hinged cover. Allied boxes are easy to mount on a wall, machine, even a pole (with pole mounting kit)! Built tough, Allied fiberglass enclosures can stand up demanding environments like chemical plants, oil refineries and irrigation systems.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1086RL
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Gasket Material: Closed Cell Neoprene
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvannealed Back Panel: PG108 Keylock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT8
Size: 10 inch
Standard Weight (lbs): 7
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339911029
