SKU: AM1206P16

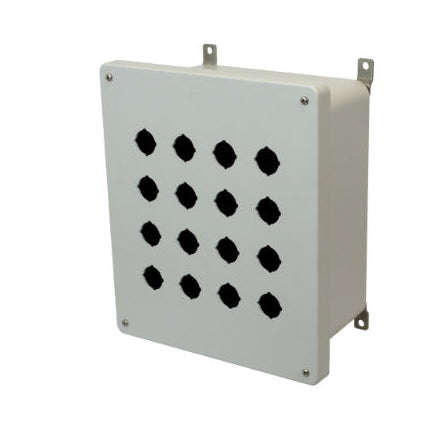

12x10x6 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover 16 PB Cutouts 30.5MM

Shipping calculated at checkout.


Description

All Allied Moulded enclosures are rated for indoor and outdoor use. Features a lift-off screw cover. Allied boxes are easy to mount on a wall, machine, even a pole (with pole mounting kit)! Our fiberglass boxes are easy to customize, punch, drill, and saw. This enclosure is part of Allied Moulded's AM series.

Additional Info

Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1206P16
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels
Size: 12 inch
Standard Weight (lbs): 8
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339912163
