SKU:
AMU864WF

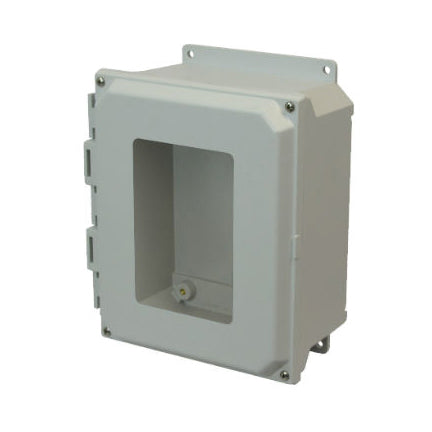

8x6x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window Flange Mount
Shipping calculated at checkout.
8x6x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window Flange Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
8x6x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window Flan...
$98.49
Unit price
/
Unavailable
Description
Description
This enclosure is part of Allied's AMU ULTRALINE series, developed for OEM applications. 300 Series stainless steel external hardware. Features a lift-off screw cover. This enclosure is part of Allied Moulded's AMU series. Available in up to 20" x 16" x 10" size.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU864WF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 8 inch
Standard Weight (lbs): 4
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339952732
