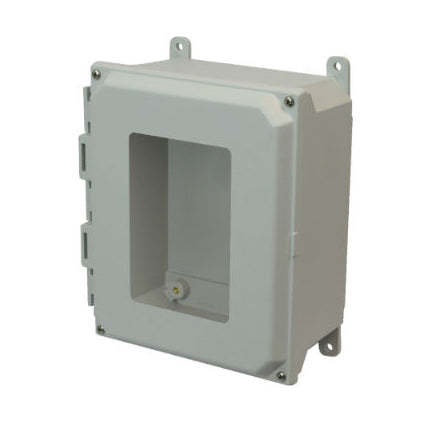

8x6x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window Foot Mount
Shipping calculated at checkout.
8x6x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
8x6x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window Foot...
$95.86
Unit price
/
Unavailable
Description
Description
Features a lift-off screw cover. This enclosure is part of Allied Moulded's AMU series. Protect electrical equipment like controls, instrumentation, and more from the elements. Secure hinge pin keeps door attached during maintenance or box use. Unlike metal enclosures, this box is corrosion resistant, lightweight, easy to modify, and affordable.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU864W
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 8 inch
Standard Weight (lbs): 4
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339952725
