SKU:
AMP1206HF

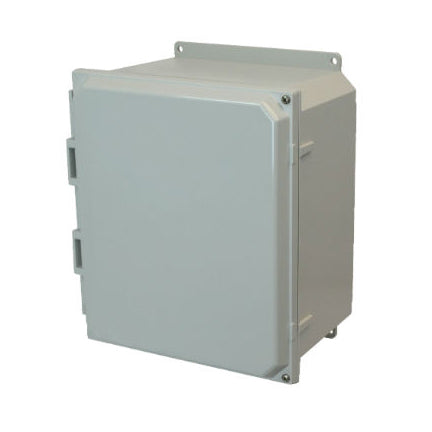

12x10x6 NEMA 4X Polycarbonate Encl Hinged Screw Cover Flange Mount
Shipping calculated at checkout.
12x10x6 NEMA 4X Polycarbonate Encl Hinged Screw Cover Flange Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
12x10x6 NEMA 4X Polycarbonate Encl Hinged Screw Cover Flange Mount
$58.95
Unit price
/
Unavailable
Description
Description
Allied Moulded brings over 55 years of experience to the table with their carefully developed material formulas and enclosure designs. Choose from clear or opaque cover options as well as latch types and various sizes. Unlike metal enclosures, polycarbonate is an electrical insulator. This enclosure is part of Allied Moulded's AMP series. Features a hinged screw cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMP1206HF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Polycarbonate box and cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Polycarbonate
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 12 inch
Standard Weight (lbs): 5
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339993407
