SKU:
AM2068RLW

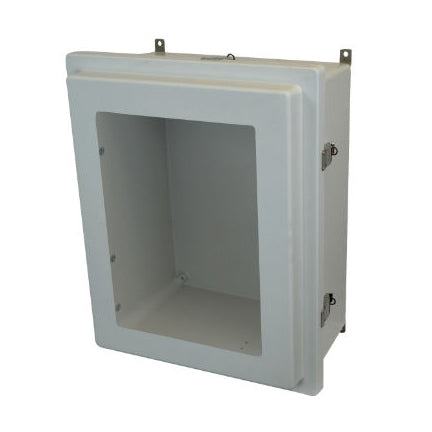

20x16x8 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hinged Cover Window
Shipping calculated at checkout.
20x16x8 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hinged Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
20x16x8 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hin...
$433.38
Unit price
/
Unavailable
Description
Description
Features a snap latch hinged cover. This enclosure is part of Allied Moulded's AM-R series. Allied enclosures are made from a unique ULTRAGUARD formulation of fiberglass reinforced polyester. Fiberglass electrical enclosures are not only easier to use and modify than metal enclosures. They also are lighter, resist corrosion, and maintain seal integrity. Protect your electrical equipment from salt, water, chemicals and more.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM2068RLW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 20 inch
Standard Weight (lbs): 20
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339920892
