SKU: AM24240RLW

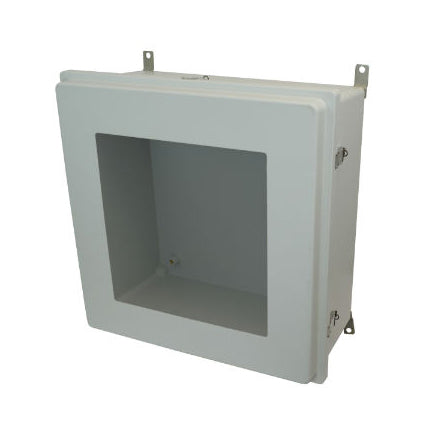

24x24x10 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hinged Cover Window

Shipping calculated at checkout.
Request a Quote

Description
Features a snap latch hinged cover. This enclosure is part of Allied Moulded's Control series. Allied Moulded brings over 50 years of fiberglass molding knowledge to their time-tested product line. They are also resistant to extreme temperatures and are designed with flame retardant properties. Allied Moulded has invested time and research into developing the leading reinforced fiberglass material on the market.

Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM24240RLW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 24 inch
Standard Weight (lbs): 26
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339924319
