SKU:
AM24240RTW

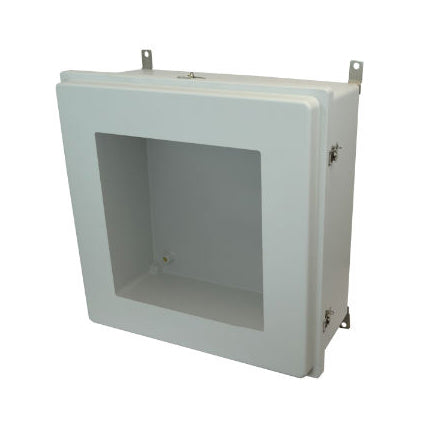

24x24x10 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover Window
Shipping calculated at checkout.
24x24x10 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
24x24x10 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cov...
$738.01
Unit price
/
Unavailable
Description
Description
Allied Moulded brings over 50 years of fiberglass molding knowledge to their time-tested product line. Made by Allied Moulded Enclosures, this box was designed especially for electrical equipment. Features a twist latch hinged cover. This enclosure is part of Allied Moulded's Control series. Enclosures are available with clear polycarbonate windows, pushbutton holes and more. Call us for any customizations you don't see available.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM24240RTW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 24 inch
Standard Weight (lbs): 26
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339924302
