SKU:
AM24248RL

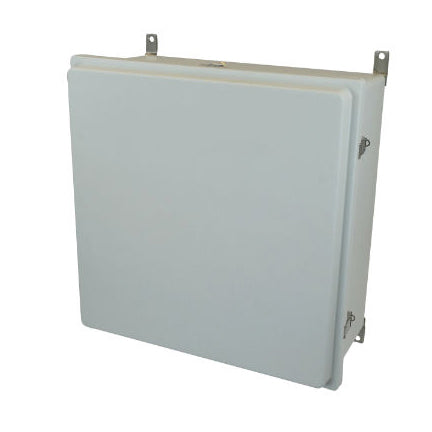

24x24x8 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hinged Cover
Shipping calculated at checkout.
24x24x8 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hinged Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
24x24x8 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hin...
$555.90
Unit price
/
Unavailable
Description
Description
Allied boxes are easy to mount on a wall, machine, even a pole (with pole mounting kit)!This enclosure is part of Allied Moulded's Control series. Fiberglass electrical enclosures are not only easier to use and modify than metal enclosures. They also are lighter, resist corrosion, and maintain seal integrity. Allied enclosures are made from a unique ULTRAGUARD formulation of fiberglass reinforced polyester.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM24248RL
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 24 inch
Standard Weight (lbs): 26
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339924258
