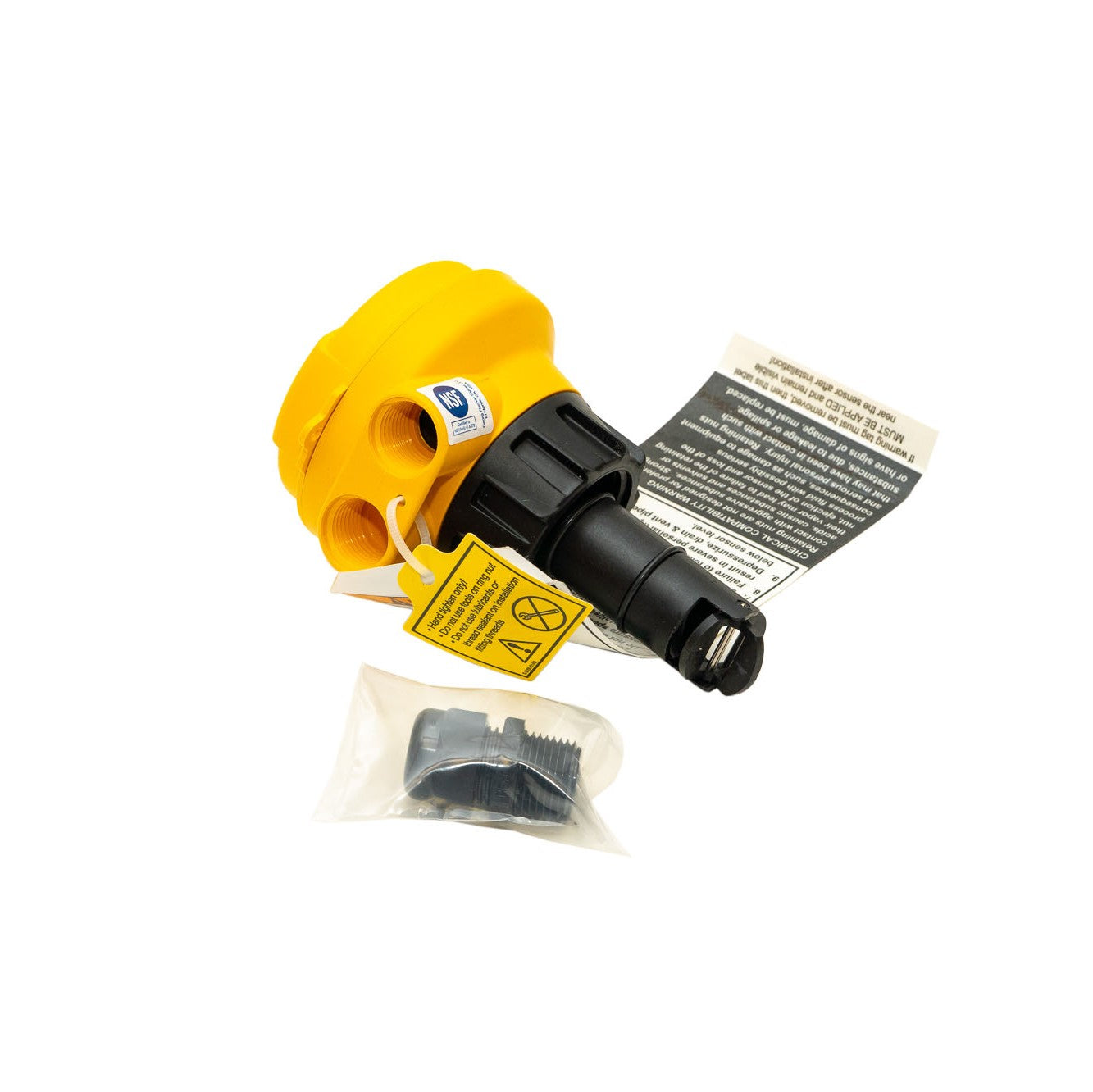

GF Signet 3-2537-6C-P0 Series 2537 Paddlewheel Flow Sensor 4-20mA, Integral Mount

The Signet 2537 Flowmeter is the next generation in fluid measurement technology from the inventor of the original paddlewheel flowmeter. This sensor is an improvement on whatﾒs already an industry standard. It has the added functionality of various output options including flow switch, multi-functional pulse, digital (S3L) or 4 to 20 mA. Additionally, it offers low flow, low power and high resolution and can be configured on-site directly through the built-in user interface.

Installation is simple because the Signet 2537 utilizes the same fittings as the popular Signet 515 and 2536 Paddlewheel Sensors and fits into pipe sizes ranging from DN15 to DN200 (1/2 to 8 inches). Available in Polypropylene and PVDF, it is ideal for a variety of applications including chemical processing, water andwastewater monitoring and scrubber control.

Applications:

• Process Flow Monitoring
• Pump Protection
• Pure Water Production
• Filtration Systems
• Chemical Production
• Reverse Osmosis
• Demineralization/Regeneration
• Fume Scrubbers
• Cooling Towers
• Proportional Metering Pump

• Digital (S3L), or 4-20mA outputs, or flow switch, or pulse output (multifunction)
• Allows for up to six sensors to Signet 8900 controller
• Low flow capabilities down to 0.3ft/s
• Polypropylene or PVDF wetted materials
• Installs into pipe sizes DN 15 to DN 200 (1/2"-8")
• Built-in user interface for onsite configuration
• Low power and high resolution
