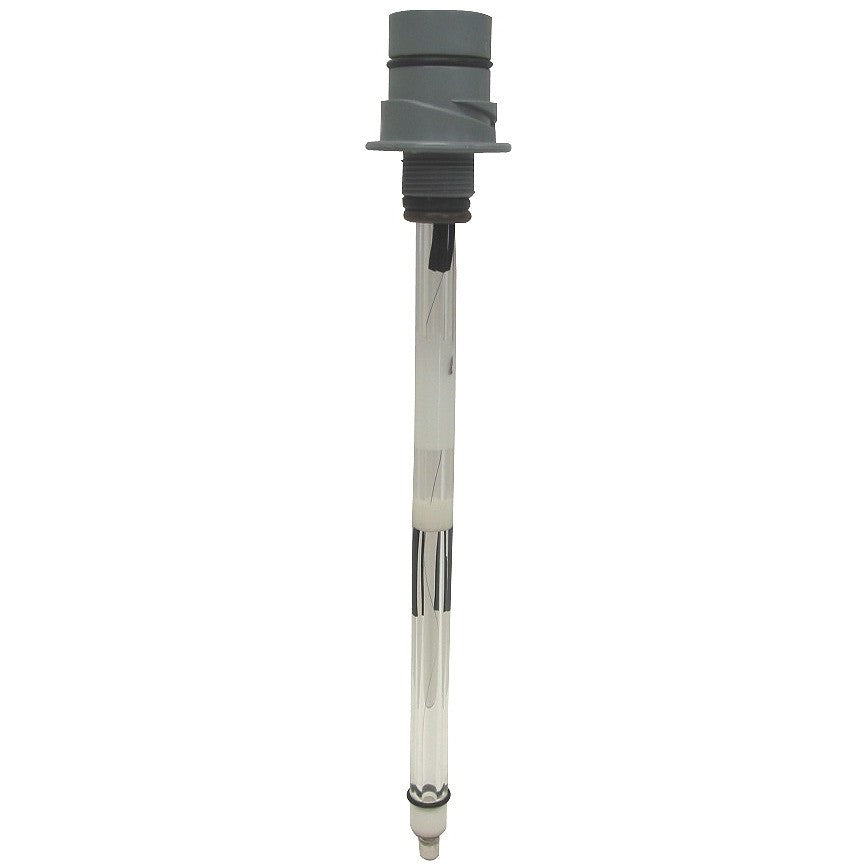

GF Signet 3-2756-WTP Series 2756 DryLoc® Wet-Tap pH Electrode with Bulb Tip and Pt1000 Temperature Element

The Signet 2756-2757 Wet-Tap pH and ORP electrodes are general purpose sensors ideal for a wide range of applications where the installation and removal of the electrode can be performed without the need for system shutdown.

The Signet 3719 pH/ORP Wet-Tap Assembly allows installation and removal of pH or ORP electrodes, even under process pressure, without the need for process shutdown during routine electrode maintenance and calibration. Process isolation is achieved during electrode retraction with two sets of double O-ring seals on a unique and compact retraction assembly; no separate valve is required.

The DryLoc connector with corrosion resistant gold plated contacts readily connects the sensor to the mating 2751 pH/ORP Smart Sensor Electronics or the 2760 Preamplifier. The robust polyarylsulphone (PAS) body and choice of bulb pH or flat ORP sensing elements allow a broad range of chemical compatibility for a wide range of applications.

The quick temperature response is available in either a Pt1000 or 3 KΩ temperature sensor and allows compatibility with all Signet pH/ORP instruments.

The Wet-Tap assembly unit can be mounted at any angle and can be used with the Signet DryLoc® Wet-Tap pH and ORP electrodes.

Applications:

• Aquatic Animal Life Support Systems
• Recreational Water Monitoring
• Water and Wastewater Treatment
• Effluent Monitoring
• Neutralization Systems
• Sanitization Systems
• Pool and Spa Control

• Durable DryLoc® connector with gold plated contacts
• Self-cleaning flat versions reduce risk of glass breakage
• Large reference volume and solid polymer electrolyte
• Temperature sensor included in pH electrodes
• Wet-Tap electrodes available with glass or plastic bodies
• Wet-Tap electrodes can be mounted at any angle
