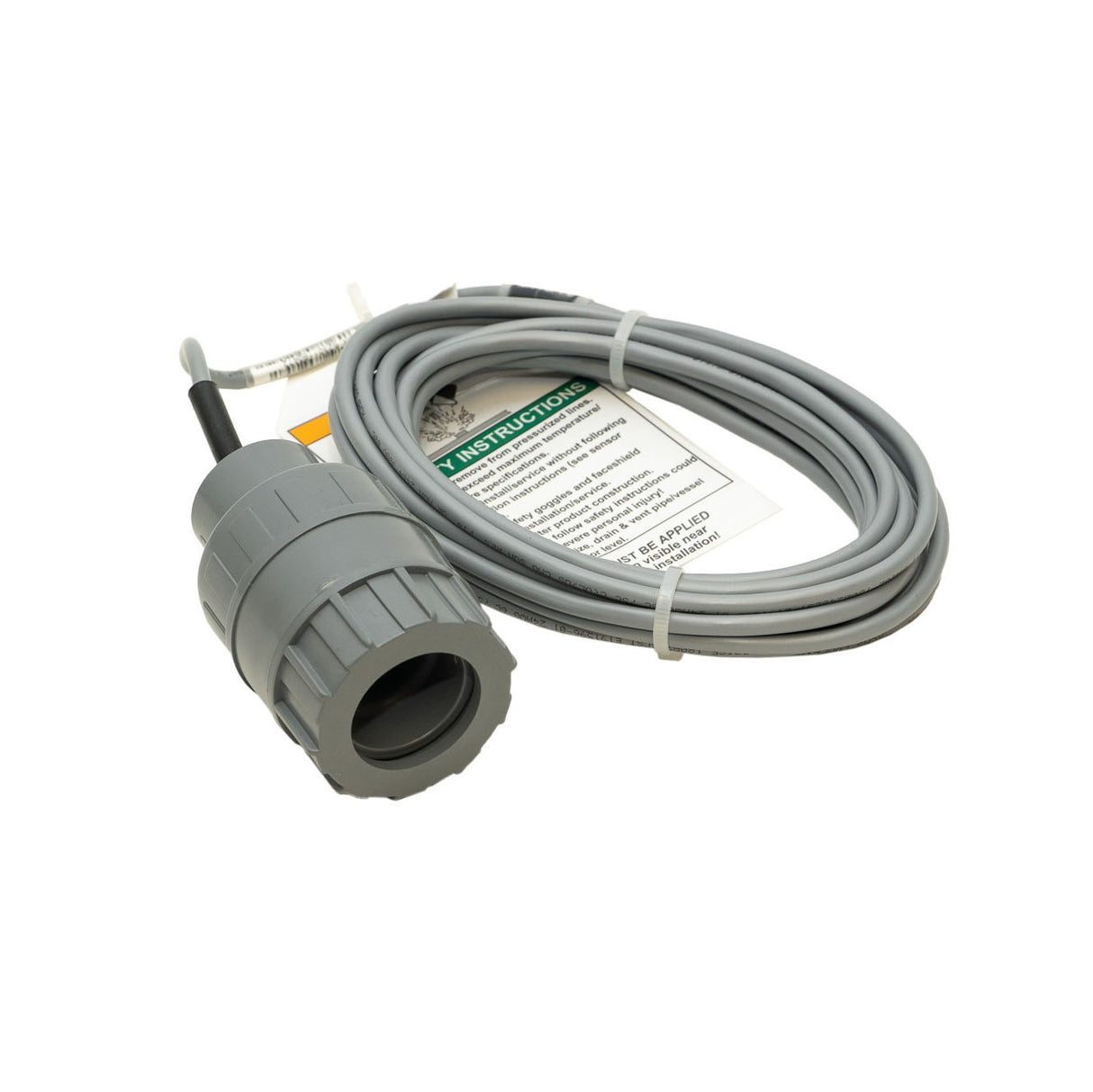

GF Signet 3-2760-1 Series 2760 DryLoc® pH/ORP Preamplifier with NPT, Sumbersible Mounting

The GF 2760 pH/ORP Preamplifiers feature a DryLoc® connector, providing a robust connection to GF DryLoc electrodes.

The 2760 preamplifier allows DryLoc® pH/ORP electrodes to work with GF ProcessPro® and ProPoint® pH/ORP instruments.

The DryLoc electrode connector system quickly forms a robust assembly for submersible and in-line installations. Optional NEMA 4X junction enclosures extend the preamplifier cable to long distances.

The 2760 submersible preamplifier can also be used asan in-line preamplifier when used with the 3/4 in. or 1 in. threaded sensors including the 272X, 274X, 277X series electrodes. The 2760 in-line preamplifier can be used with GF fittings up to DN100 (4 in.) and Wet-Tap assemblies.

The 2760 pH/ORP preamplifiers are compatible with the GF 8750 and older analog transmitters. The 8900 and 9900 instruments and Profibus Concentrator require the use of the 2751 Smart Sensor Electronics, and are not compatible with the 2760 preamplifier.

Applications:

• Water/Wastewater Treatment
• Neutralization Systems
• Scrubber Control
• Effluent Monitoring
• Surface Finishing
• Flocculent Coagulation
• Heavy Metal Removal and Recovery
• Toxic Destruction
• Sanitization Systems
• Pool and Spa Control
• Aquatic Animal Life Support Systems

• Inline integral mount and submersible installation versions
• Automatic temperature compensation
• Auto configuration for pH or ORP operation
• Optional EasyCal calibration aid
• Automatic buffer recognition
• Junction boxes for convenient wiring
