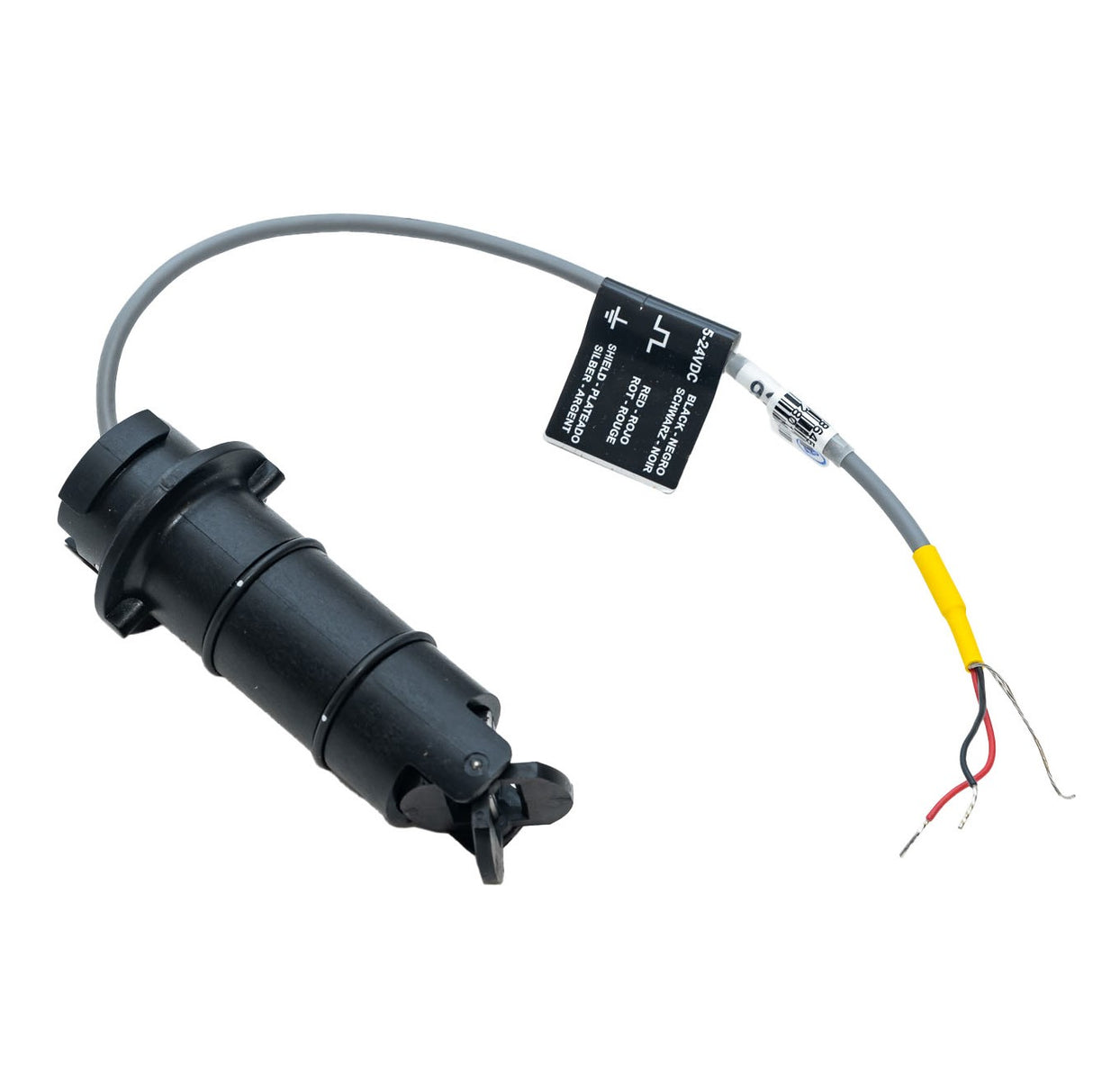

GF Signet 3-8512-P0 Rotor-X Paddlewheel Flow Integral Sensor 1/2" to 4", Polypropylene Body, Black PVDF Rotor, Titanium Pin

Simple to install with time-honored reliable performance, Signet 2536 Rotor-X Paddlewheel Flow Sensors are highly repeatable, rugged sensors that offer exceptional value with little or no maintenance. The Model 2536 has a process-ready open collector signal with a wide dynamic flow range of 0.1 to 6 m/s (0.3 to 20 ft/s). The sensor measures liquid flow rates in full pipes and can be used in low pressure systems.

The Signet 2536 sensors are offered in a variety of materials for a wide range of pipe sizes and insertion configurations. The many material choices including PP and PVDF make this model highly versatile and chemically compatible to many liquid process solutions.

Sensors can be installed in DN15 to DN900 (1/2 to 36 in.) pipes (except the 2536 PVC versions, which can be installed in DN15 to DN100 (1/2 to 4 in.) pipes), using Signet's comprehensive line of custom fittings. These custom fittings, which include tees, saddles, and weldolets, seat the sensor to the proper insertion depth into the process flow. The sensors are also offered in configurations for wet-tap installation requirements.

Applications:

• Pure Water Production
• Filtration Systems
• Chemical Production
• Liquid Delivery Systems
• Pump Protection
• Scrubber/Gas Stacks
• Gravity Feed Lines
• Not suitable for gas
• Sodium Hypochlorite transfer/injection/batching (3-2536-U0)

• Flow sensor for integral mounting on the 8150 instrument using the 3-8051-X Flow Sensor Integral Mount Kit (sold separately)
• Operating range 0.1 to 6 m/s (0.3 to 20 ft/s)
• Wide turndown ratio of 66:1
• Open-collector output
• Highly repeatable output
• Simple, economical design
• Installs into pipe sizes DN15 to DN900 (1/2 to 36 in.)
• PVC 2536 version DN15 to DN100 (1/2 to 4 in.) for concentrated Sodium Hypochlorite 12.5% applications
• High resolution and noise immunity
• Test certifi cate included for -X0, -X1
• Chemically resistant materials
