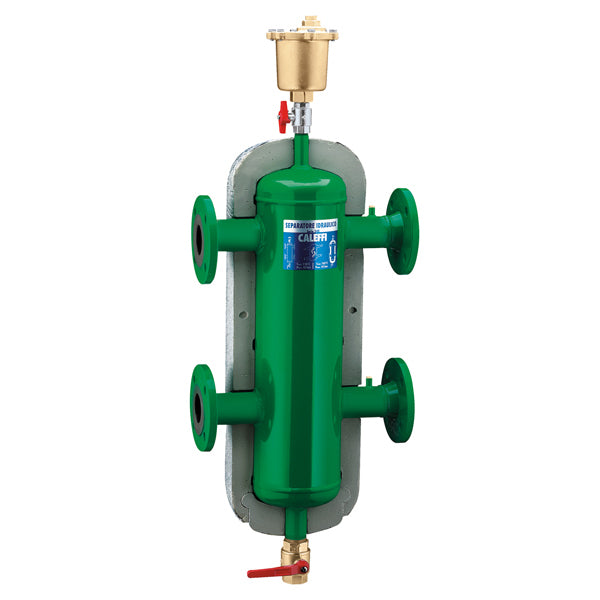

2-1/2" Caleffi NA548 Flanged Hydro Separator ANSI Flange ASME & CRN (NA548062A)

Hydraulic separator. Epoxy resin coated steel body. Pre-formed insulation on 2"ﾗ 4" sizes. Complete with: automatic air vent (code 501502A). shut-off valve (code NA39589). drain valve (code NA39588). ANSI 150 flange connections. Max. working pressure: 150 psi. Vessel temperature range: 32ﾗ220ﾰF. Vessel temp. w/o insulation: 32ﾗ270ﾰF. Baffle plates for all sizes: 304SST NA prefix indicates ASME U-stamp tagged and registered with the National Board of Boiler and Pressure Vessel Inspectors; CRN registered. *Without insulation
