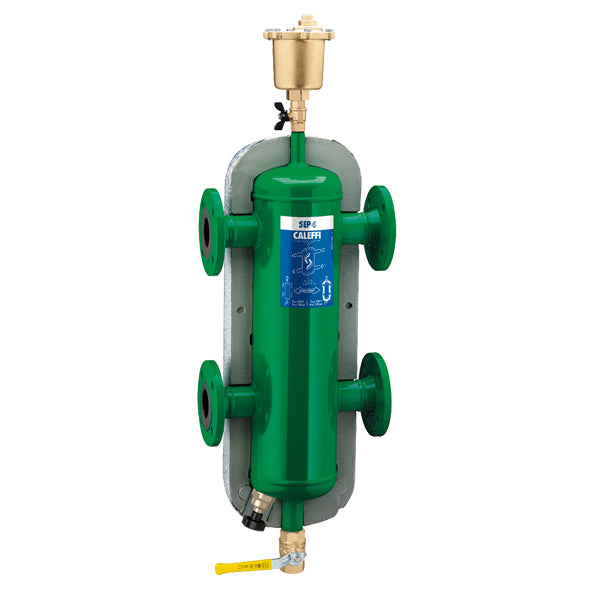

4" Caleffi 4-in-1 Hydraulic Separator NA549 SEP4 ANSI Flange ASME & CRN (NA549102AM)
Combination 1. air, 2. hydraulic, 3. dirt
separation, plus 4. magnetic separation.
Epoxy resin coated steel body.
Stainless steel internal coalescing mesh.
Pre-formed insulation on 2"ラ 4" sizes.
One neodymium magnet.
Complete with:
automatic air vent (code 501502A).
air vent shut-off valve (code NA39589).
1" drain valve NA39753 (2"ラ 4" sizes)
1ᄐ" drain valve NA39588 (5" ラ 6" sizes).
ANSI 150 flange connections.
Max. working pressure: 150 psi.
Vessel temperature range: 32ラ220ᄚF.
Working temp. w/o insulation: 32ラ270ᄚF.
Particle separation capacity: to 5 ?m (0.2 mil).
Additional Info
Brand: Caleffi Hydronic Solutions
Size: 4 inch
SKU:
NA549102AM
4" Caleffi 4-in-1 Hydraulic Separator NA549 SEP4 ANSI Flange ASME & CRN (NA549102AM)
4" Caleffi 4-in-1 Hydraulic Separator NA549 SEP4 ANSI Flange ASME & CRN
Shipping calculated at checkout.
4" Caleffi 4-in-1 Hydraulic Separator NA549 SEP4 ANSI Flange ASME & CRN (NA549102AM) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
4" Caleffi 4-in-1 Hydraulic Separator NA549 SEP4 ANSI Flange ASME & CRN
Description
Description
Combination 1. air, 2. hydraulic, 3. dirt
separation, plus 4. magnetic separation.
Epoxy resin coated steel body.
Stainless steel internal coalescing mesh.
Pre-formed insulation on 2"ラ 4" sizes.
One neodymium magnet.
Complete with:
automatic air vent (code 501502A).
air vent shut-off valve (code NA39589).
1" drain valve NA39753 (2"ラ 4" sizes)
1ᄐ" drain valve NA39588 (5" ラ 6" sizes).
ANSI 150 flange connections.
Max. working pressure: 150 psi.
Vessel temperature range: 32ラ220ᄚF.
Working temp. w/o insulation: 32ラ270ᄚF.
Particle separation capacity: to 5 ?m (0.2 mil).
Additional Info
Additional Info
Brand: Caleffi Hydronic Solutions
Size: 4 inch
