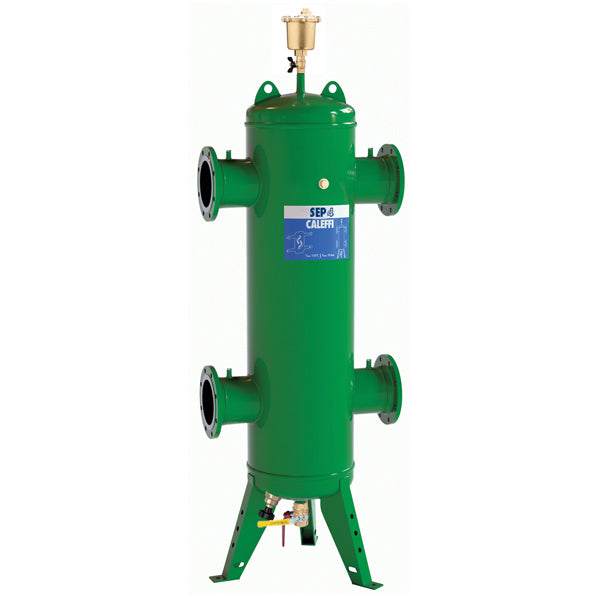

8" Caleffi 4-in-1 Hydraulic Separator NA549 SEP4 ANSI Flange ASME & CRN (NA549200AM)

Combination 1. air, 2. hydraulic and 3. dirt separation, plus 4. magnetic separation. Epoxy resin coated steel body. Stainless steel internal coalescing mesh. Three neodymium magnets. Complete with: automatic air vent (code 501502A). air vent shut-off valve (code NA39589). drain valve (code NA59600). ANSI 150 flange connections. Thermometer pockets (NPT): ﾽ" inlet/outlet flanges, ﾾ" front center Max. working pressure: 150 psi. Vessel temperature range: 32ﾗ270ﾰF. Particle separation capacity: to 5 ?m (0.2 mil). ASME U-stamp tagged and registered with the National Board of Boiler and Pressure Vessel Inspectors; CRN registered up to 10". Consult factory for 12"ﾗ 14".
