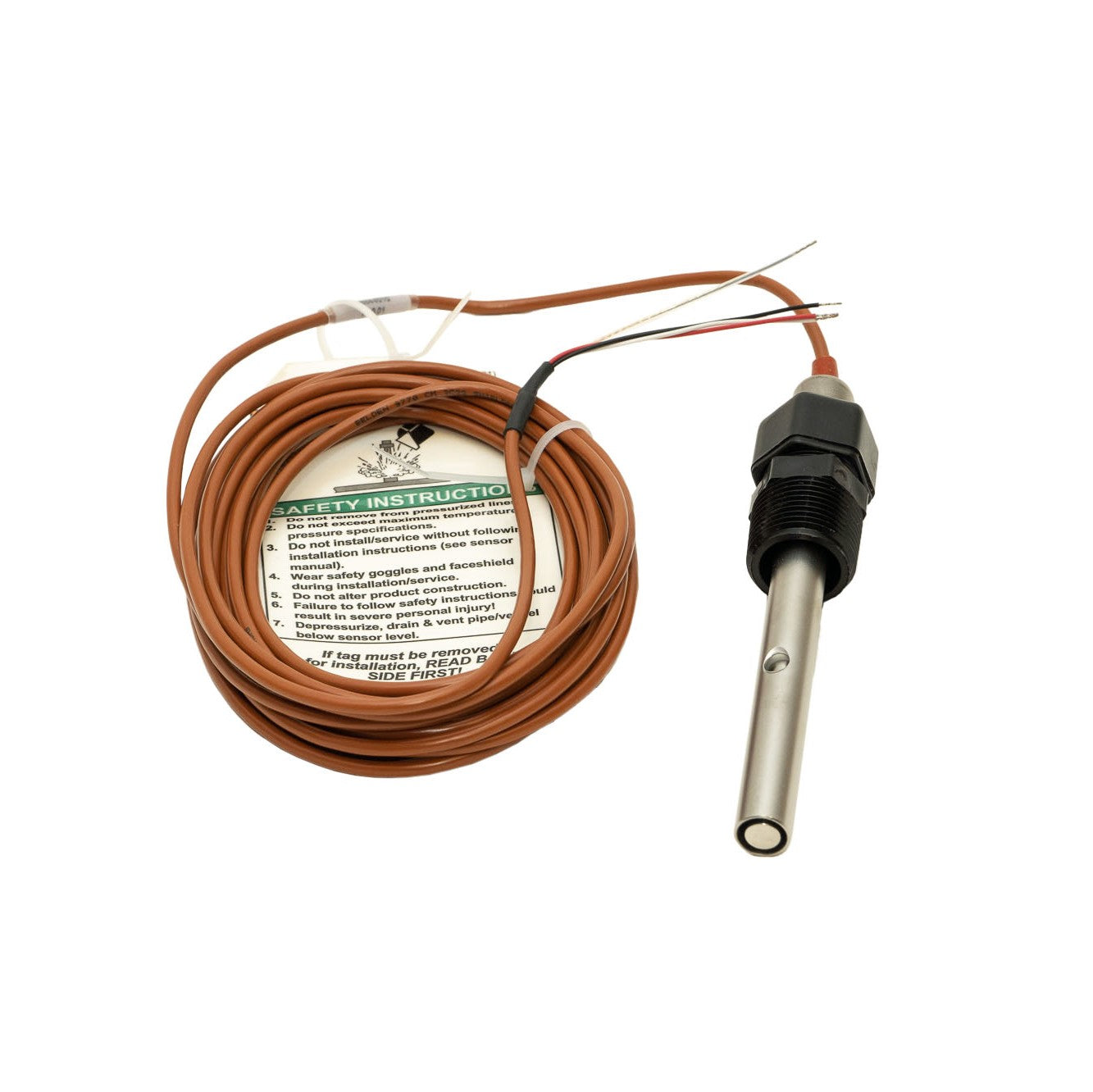

Signet 2818-2823 Conductivity/Resistivity Electrodes are designed to provide versatile installation and accurate sensing across a very broad dynamic range. These electrodes are built with a controlled surface finish to ensure accuracy and repeatability. The standard electrode is constructed 316 SS, but there are other materials available for maximum chemical compatibility.

Reversible threads or sanitary flanges allow for maximum installation versatility.

Sanitary flange versions are available in stainless steel and Titanium with surface quality finish of less than RA 25 and with an optional NIST Traceability Certificate to meet USP requirements.

Coupled with Signet patented measuring circuitry, a three decade measurement range is achieved without the need for troublesome electrode platinization. A platinum RTD (Pt1000) located within the electrode allows optimal temperature sensing.

Applications:

• Pure Water Treatment: Reverse Osmosis, Deionization, Distillation
• Boiler Condensate
• Semiconductor Water Production
• Rinse Water Monitoring and Control
• TDS (Total Dissolved Solids)
• Salinity
• USP Purified Water
• WFI Water Production
• Ultra Pure Water

• Measurement range from .055-10,000 &microS when used with Signet conductivity instrumentation
• Controlled surface finish and integral temperature compensation devices ensure accurate conductivity measurement
• Available in three cell constants
• Reversible 3/4" NPT process connection for inline and tank usage
• Integral PT-1000
• Resistivity down to 18.3 MΩ
