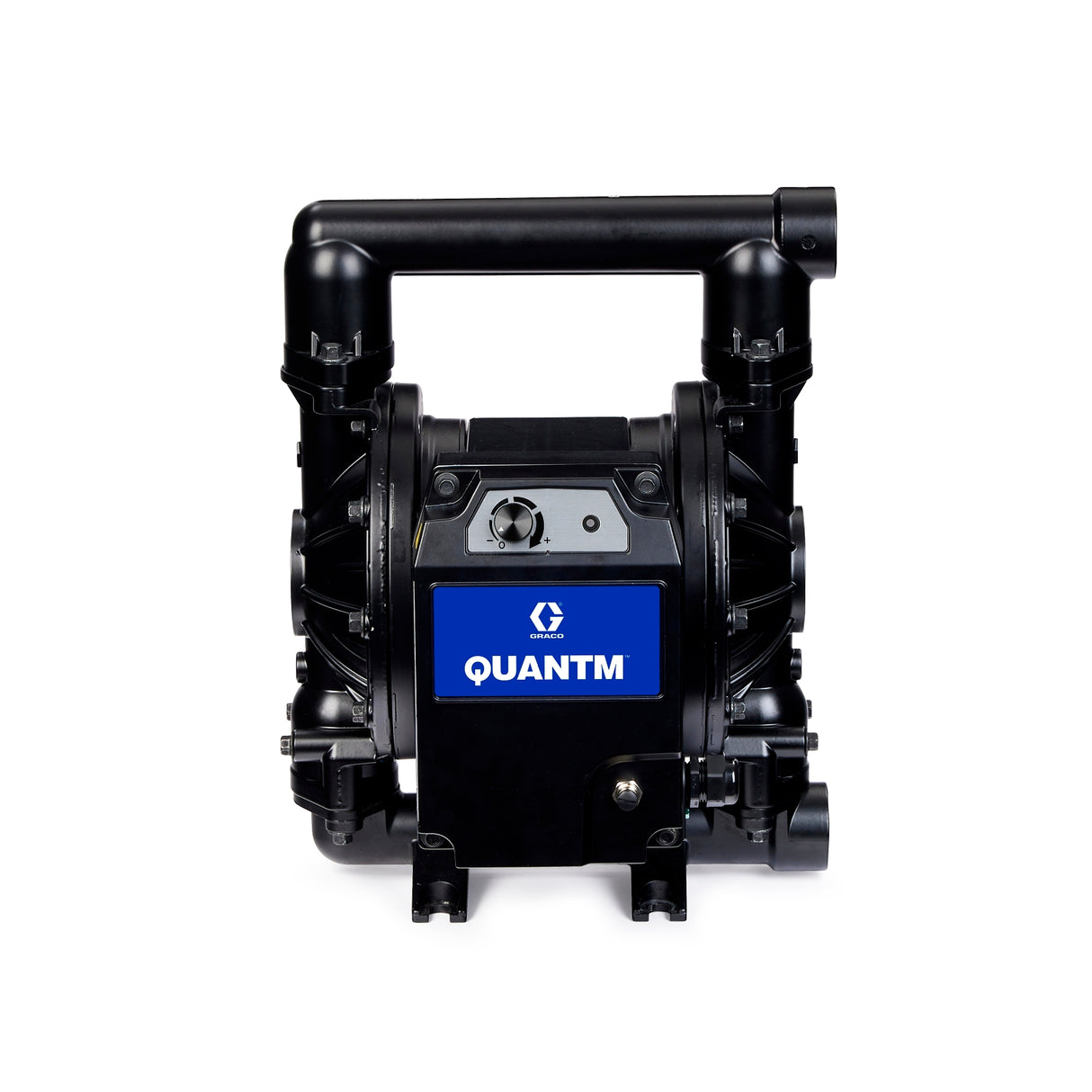

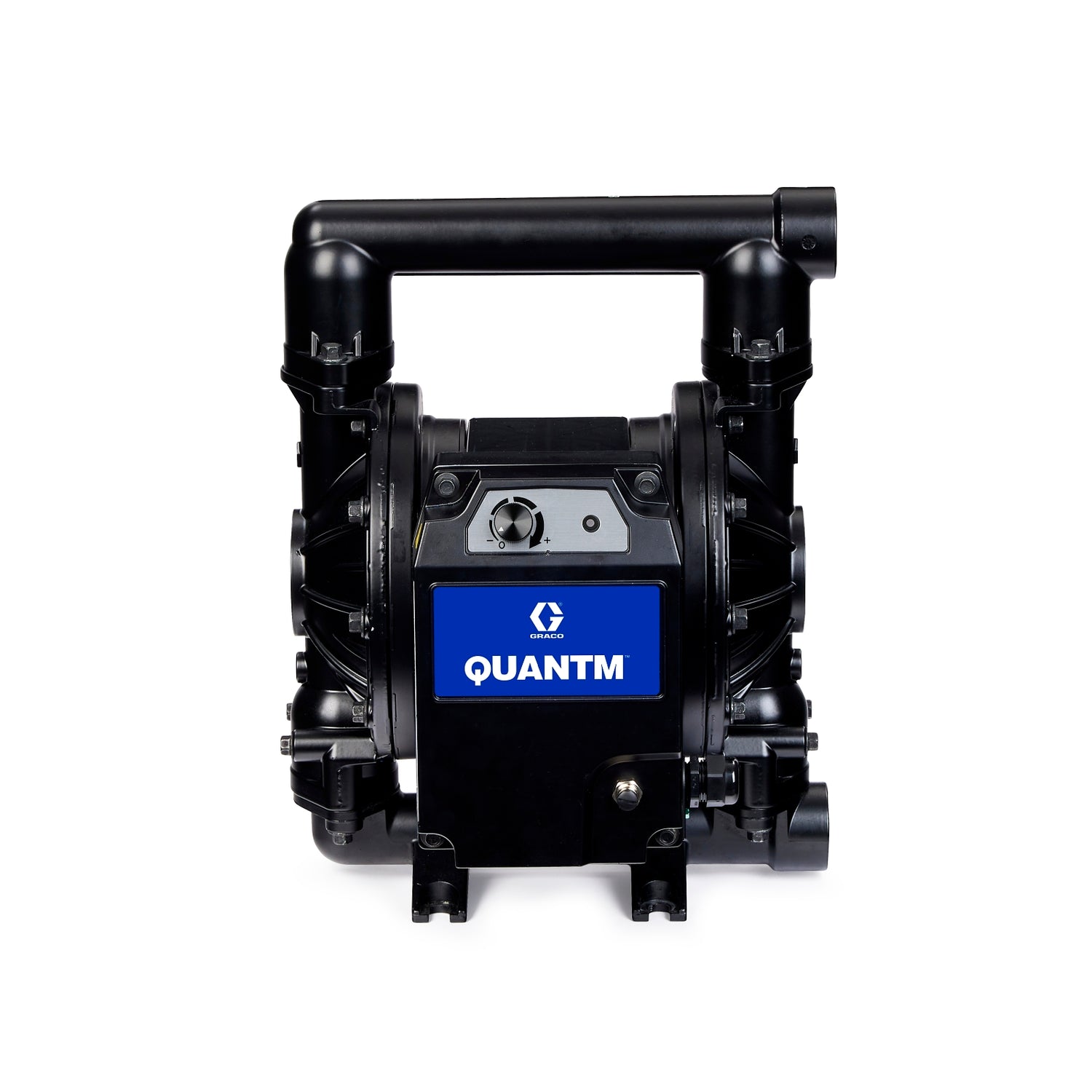

Graco TE80-0158 QUANTM i80, 1.5 in FNPT, Aluminum Electric Double Diaphragm Pump, FluxCore Drive 240 VAC 3Ph, 316SS Seat, 440CSS Ball, Santoprene Diaphragm

QUANTM isn't just another electric pump: it's a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It's time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump.

The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons.

Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Patented FluxCore drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

• Powder-coated aluminum FluxCore drive
• 240 VAC 3Φ motor with 15 ft flying leads
• CID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval

• Aluminum fluid section with NPT end port
• Internal components include 316 stainless steel seat, 440C stainless steel ball, Santoprene diaphragm and PTFE manifold o-ring

• Wide operating range and materials compatibility - it handles abrasives, solids, aggressive chemicals, and shear-sensitive materials
• Up to 80% more efficient than AODD, 50% more efficient compared to competitive electric technologies - displacing fossil fuel, hydraulics and air power
• Unique high-torque density design displaces gears, belts, and chains to minimize weight/size and replaces copper "rat's nest" with a simple, low-resistance circular coil and steel stator to drive efficiencies and reduce maintenance complexity
• FluxCore Drive Module Control includes a simple knob that adjusts pump speed, LED indicating status and trouble codes, and software required for pump operation
• Similar size to existing AODD, the removal of the gearbox reduces footprint compared to other electric options
• Self-priming and seal-less design that minimizes maintenance and spare parts costs
• The only electric diaphragm pump on the market that stalls under pressure, eliminating the need for pressure sensors and additional controllers and reducing downtime by preventing pump failures caused by clogged lines or closed valves
• Leak Sensor (optional)
• Applications: Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer
