SKU:
AM24200RTW

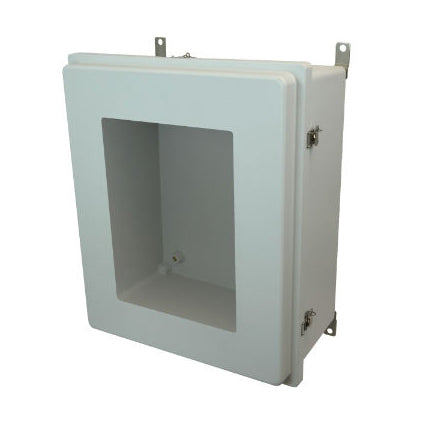

24x20x10 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover Window
AM-R Series JIC Size Junction Box with Twist Latch Hinged Cover and Window - Part: AM24200RTW
Shipping calculated at checkout.
24x20x10 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
24x20x10 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cov...
$0.00
Unit price
/
Unavailable
Description
Description
Ultraguard reinforced fiberglass is formulated to resist effects of UV exposure, plus discoloration and yellowing. Allied boxes are easy to mount on a wall, machine, even a pole (with pole mounting kit)! Features a twist latch hinged cover. This enclosure is part of Allied Moulded's AM-R series. Built tough, Allied fiberglass enclosures can stand up demanding environments like chemical plants, oil refineries and irrigation systems.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM24200RTW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 24 inch
Standard Weight (lbs): 24
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339924067
