Why Choose Brass Valves?
Brass handles higher pressures and temperatures than thermoplastic valve materials like PVC and CPVC, making it the right choice for hot water systems, steam, compressed air, and other applications that exceed the operating limits of plastic. Brass is naturally resistant to corrosion from water, making it a standard material in residential and commercial plumbing. It is also less expensive than stainless steel while still offering strong performance across a wide range of media.
Our brass valves are manufactured from cast brass, meaning the body is formed as a single piece using molten metal poured into a mold. Cast construction provides superior strength and consistent wall thickness compared to machined or forged alternatives.
Types of Brass Valves

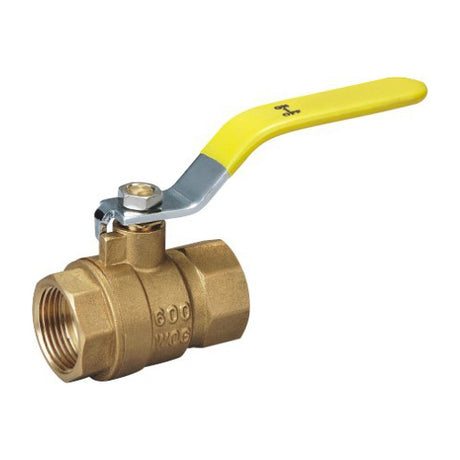

Brass Ball Valves
Brass Ball Valves provide fast, reliable on/off flow control with a quarter-turn handle. A full-port ball inside the valve body allows unrestricted flow when open and creates a tight seal when closed, with minimal pressure drop across the valve. Our Apollo brass ball valves feature PTFE seats, lead-free brass bodies, and are rated up to 600 PSI CWP at temperatures up to 366°F. Available with threaded FNPT x FNPT or sweat solder end connections for copper piping. Ball valves are the most common brass valve type and are used in residential plumbing, commercial mechanical systems, HVAC, compressed air, and general industrial service.

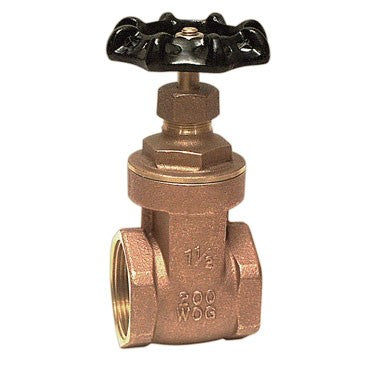

Brass Gate Valves
Brass Gate Valves provide full-bore, low-restriction flow when open and a tight seal when closed. Gate valves are designed for on/off isolation rather than throttling and are commonly used in water distribution, fire protection, and general-purpose plumbing where the valve remains either fully open or fully closed during normal operation. Available with threaded NPT end connections.
Brass Check Valves
Brass Check Valves allow flow in one direction and prevent backflow automatically with no manual operation required. A swing-type mechanism inside the valve opens with forward flow and closes under reverse pressure, protecting pumps, water heaters, and other equipment from damage caused by backflow. Brass check valves are compact and install inline with threaded connections.
Lead-Free Brass for Potable Water
Federal and state regulations require that valves and fittings used in potable water systems contain no more than 0.25% lead on wetted surfaces. Our Apollo lead-free brass ball valves meet this requirement and are certified to NSF/ANSI 372 for lead-free compliance and NSF/ANSI 61-8 for drinking water system components. If your application involves potable water supply, domestic plumbing, or any system connected to a drinking water source, lead-free brass valves are required by code. For applications that do not involve potable water, including industrial process lines, irrigation, and compressed air, standard leaded brass may also be available. Contact us to confirm which option is right for your project.
Sizes and Connections
Sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2", and 2". Availability varies by valve type.
Threaded ends, FNPT x FNPT: Threaded ends are the standard connection for brass valves. Female NPT threads on both ends allow the valve to be installed between two male-threaded pipe ends or nipples. Use PTFE thread tape or pipe thread sealant for a leak-free joint. Threaded connections allow for easy removal and replacement during maintenance.
Sweat ends, solder: Sweat ends are available on Apollo brass ball valves for direct soldered connections to copper tubing. Sweat connections create a permanent, high-strength joint and are standard in residential and commercial copper piping systems.
Specs at a Glance
- Body material: Lead-free cast brass, NSF/ANSI 372 compliant
- Seat material: PTFE
- Max pressure: Up to 600 PSI CWP, ball valves
- Max temperature: 366°F, 185°C
- Certifications: NSF/ANSI 372, NSF/ANSI 61-8, FM 1140
Common Applications
- Potable water supply and distribution
- Residential and commercial plumbing
- HVAC hot and chilled water systems
- Compressed air systems
- Boiler and water heater isolation
- Fire protection systems
- Irrigation, non-potable
- General industrial piping
Brands We Carry
Apollo Valves
Apollo Valves is one of the most recognized names in brass valves in the United States. Apollo brass ball valves are full-port, lead-free, and carry NSF, FM, and UL certifications. Their valves are widely specified in commercial plumbing, mechanical contracting, and industrial applications.
ASC Engineered Solutions
ASC Engineered Solutions, formerly Smith Cooper International, manufactures a broad line of brass, bronze, cast iron, and forged steel valves and fittings. We carry Smith Cooper brass check valves, gate valves, and related products for commercial and industrial piping systems.
Why Buy Brass Valves from Commercial Industrial Supply?
We are an authorized distributor for both Apollo and Smith Cooper and stock brass ball valves, gate valves, and check valves across a full range of sizes and connection types. We also carry the complete range of metal valves in stainless steel, carbon steel, cast iron, ductile iron, and cast bronze, so you can source your entire valve package from a single supplier. Wholesale pricing is available for contractors and project orders. Call (866) 777-8001 or request a quote online.
