Mechanical Flow Meters
(112 products)
CIS carries a complete line of Mechanical Flow Meters (we carry all Blue White models). Browse our online inventory, if you don't see what you need, call one of our product experts or complete the request a quote form.
F-400N Series Flowmeter
- Pipe Sizes 1/4", 3/8", 1/2" F/NPT
- Machined acrylic body
- Direct reading permanent scale
- White back reflector
- Viton o-ring seals on adapters
- Standard 316 SS, PVDF, Teflon float
- Working pressure: 150 psig (10.3 bar) @ 70°F
|
F-410N Series Flowmeter
- Pipe Sizes 3/4", 1" F/NPT
- Machined acrylic body with clear finish
- Direct reading permanent scale
- White back reflector
- Viton o-ring seals on adapters
- Standard 316 SS or PVC float
- Working pressure: 150 psig (10.3 bar) @ 70°F
|

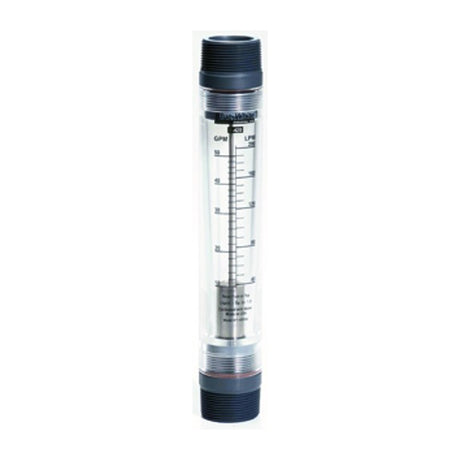

F-420N Series Flowmeter
- Pipe Sizes 1" F/NPT, 1-1/2" M/NPT
- Tough machined acrylic body
- Direct reading permanent scale
- White back reflector for easy reading
- Viton o-ring seals on adapters
- Standard 316 SS float guide rods
- Working pressure: 130 psig (8.9 bar) @ 70°F
|
F-430N Series Flowmeter
- Pipe Sizes 1-1/2" , 2" F/NPT
- Tough machined acrylic meter body
- Direct reading permanent scale
- White back reflector for easy reading
- Viton o-ring seals on adapters
- Standard 316 SS float guide rods
- Working pressure: 130 psig (8.9 bar) @ 70°F
|
F-460 & F-461 Series Flowmeters - Rib-Guided Float
- Pipe Sizes 1/2" , 3/4", 1" F/NPT
- Rib-guided float
- Polysulfone meter body
- Great for corrosive applications
- All-plastic (metal free) fluid path
- Not recommended for direct sunlight
- Working pressure: 150 psig (10.3 bar) @ 70°F
|
F-462 Series Flowmeter - Rib-Guided Float
- Pipe Sizes 2"
- Rib-guided float
- Polysulfone meter body
- No metals in fluid path!
- Ideal for deionized water or other corrosive applications
- Not recommended for direct sunlight
- Working pressure: 150 psig (10.3 bar) @ 70°F
|
F-440 Series Flowmeter / Solarmeter
- Pipe Sizes: 3/8", 1/2", 3/4" M/NPT (various F/NPT and SWEAT options)
- Polysulfone meter body
- Compact body size with 2" scale length
- Solarmeter model features brass adapters and half unions
- In line or panel mount configurations available
- Standard models 316 SS guide rods
- Optional integral flow adjustment rods
- Not recommended for direct sunlight
- Working pressure: 175 psig (12.0 bar) @ 70°F
|
F-450N Series Flowmeter / Solarmeter
- Pipe Sizes: 3/8" F/NPT, 1/2", 3/4" M/NPT (various SWEAT options)
- Tough polysulfone meter body
- 4" (approx) scale length
- Solarmeter has brass adapters and half unions
- In line or panel mount configurations available
- Standard models 316 SS or Teflon float
- Optional integral flow adjustment rods
- Not recommended for direct sunlight
- Working pressure: 175 psig (12.0 bar) @ 70°F
|
F-451 Series Flowmeter - High Volume
- Pipe Sizes 1", 1-1/2" F/NPT
- Polysulfone meter body
- 316 SS or Hastelloy rod guided float
- Direct reading permanent scale
- Optional integral flow adjustment rods
- Not recommended for direct sunlight
- Working pressure: 150 psig (10.0 bar) @ 70°F
|
F-452N Series Flowmeter
- Pipe Sizes 2" F/NPT
- Polysulfone meter body
- 316 SS or Hastelloy rod guided float
- Direct reading permanent scale
- Adapters and unions re-engineered for increased protection from misalignment and vibration
- Not recommended for direct sunlight
- Working pressure: 150 psig (10.0 bar) @ 70°F
|
F-550 Series Flowmeter - Panel Mount
- Pipe Sizes: 1/4", 3/8", 1/2", 3/4", 1"
- Durable one piece meter body
- 316 SS floats and float guides
- Bulkhead nuts attach to inside panel (No separate mounting screws needed!)
- Adjustable flow control valve on F-550A models
- Acceptable in direct sunlight applications
- Working pressure: 250 psig (17.2 bar) @ 70°F
|
F-300 & D-300 Series Flowmeters
- Pipe Sizes: 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 6", 8"
- Suited for closed pipe installation
- Easy to read dual scale (GPM/LPM) screen
- Install either horizontal or vertical
- Acrylic meter body (one piece)
- Internal parts are corrosion resistant
- Working pressure: 150 psig (10.3 bar) @ 70°F
|
Mechanical Flow Meters are used to measure flow using a composition of moving parts by passing fluid or gas through a series of chambers or gears. A flow measurement is obtained by counting the number of passed isolate volumes of gas or fluid. A Mechanical Flow meter is available in a wide variety of types to accommodate specific measuring needs for different applications.
Clamp On flow meters are attached just as they sound - with clamps. A hole is drilled directly in the top of the pipeline, and the meter is installed in the new opening. Rotameters, often called variable area meters, are typically made out of glass with a float inside that is raised up by fluid flow and down by gravity. This type of meter is typically used with water or air measurement. Another common type is a paddlewheel. That has sensors on paddles that can measure flow in either direction and offers superior accuracy and ease of installation. Many industries use Mechanical Flow Meters for measurement applications that include water treatment systems, pools, deionized water manufacturing, solar panel manufacturers, and reverse osmosis systems.
