SKU:
AM1086W

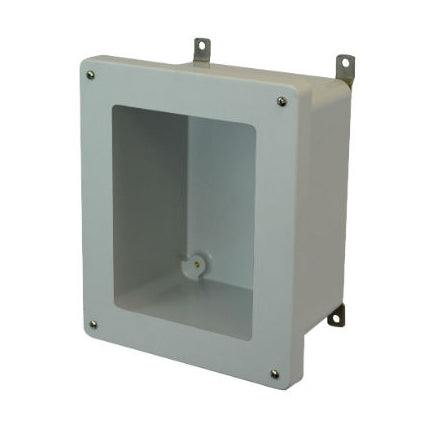

10x8x6 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window
Shipping calculated at checkout.
10x8x6 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
10x8x6 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window
$136.50
Unit price
/
Unavailable
Description
Description
All Allied Moulded enclosures are rated for indoor and outdoor use. Enclosures are available with clear polycarbonate windows, pushbutton holes and more. Call us for any customizations you don't see available. Ultraguard reinforced fiberglass is formulated to resist effects of UV exposure, plus discoloration and yellowing. This enclosure is part of Allied Moulded's AM series. Features a lift-off screw cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1086W
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Gasket Material: Closed Cell Neoprene
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvannealed Back Panel: PG108 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8
Size: 10 inch
Standard Weight (lbs): 6
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339911050
