SKU: AM1086RT

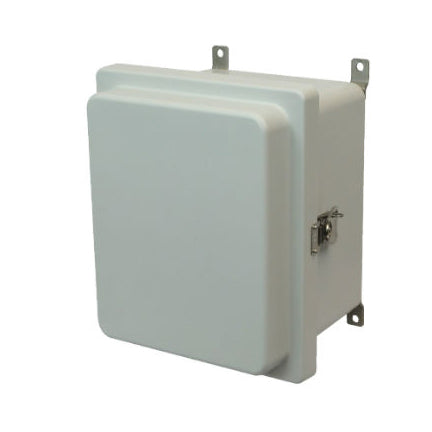

10x8x6 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover

AM-R Series JIC Size Junction Box with Twist Latch Hinged Cover - Part: AM1086RT
Shipping calculated at checkout.
Request a Quote

Description
Ultraguard reinforced fiberglass is formulated to resist effects of UV exposure, plus discoloration and yellowing. Additionally, fiberglass is a fraction of the cost of heavy and difficult to use stainless steel enclosures. This enclosure is part of Allied Moulded's AM-R series. Features a twist latch hinged cover. Enclosures are available with clear polycarbonate windows, pushbutton holes and more. Call us for any customizations you don't see available.

Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1086RT
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Gasket Material: Closed Cell Neoprene
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvannealed Back Panel: PG108 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8
Size: 10 inch
Standard Weight (lbs): 7
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339911197
