SKU:
AM1206HW

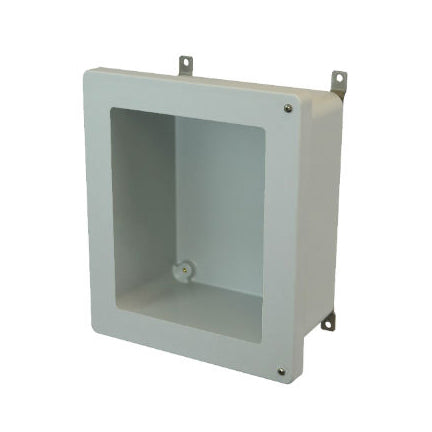

12x10x6 NEMA 4X Fiberglass Enclosure Hinged Screw Cover Window
Shipping calculated at checkout.
12x10x6 NEMA 4X Fiberglass Enclosure Hinged Screw Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
12x10x6 NEMA 4X Fiberglass Enclosure Hinged Screw Cover Window
$156.05
Unit price
/
Unavailable
Description
Description
Built tough, Allied fiberglass enclosures can stand up demanding environments like chemical plants, oil refineries and irrigation systems. Enclosures are available with clear polycarbonate windows, pushbutton holes and more. Call us for any customizations you don't see available. This enclosure is part of Allied Moulded's AM series. Features a hinged screw cover. Protect your electrical equipment from salt, water, chemicals and more.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1206HW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvannealed Back Panel: PG120 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT10
Size: 12 inch
Standard Weight (lbs): 8
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339912279
