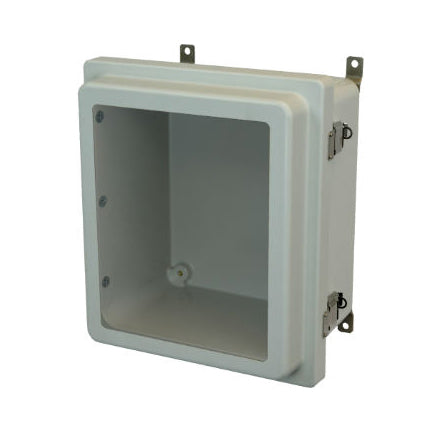

16x14x8 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hinged Cover Window
Shipping calculated at checkout.
16x14x8 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hinged Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
16x14x8 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hin...
$233.45
Unit price
/
Unavailable
Description
Description
Protect your electrical equipment from salt, water, chemicals and more. They are also resistant to extreme temperatures and are designed with flame retardant properties. This enclosure is part of Allied Moulded's AM-R series. Allied Moulded has invested time and research into developing the leading reinforced fiberglass material on the market. Features a snap latch hinged cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1648RLW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P164 Aluminum Back Panel: PA164 Fiberglass Back Panel: PF164 Galvannealed Back Panel: PG164 Aluminum HFP: HFP164 Keylock Kit: AMKEYLOCKRCKeylock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT14
Size: 16 inch
Standard Weight (lbs): 14
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339916765
