SKU: AMU2060L

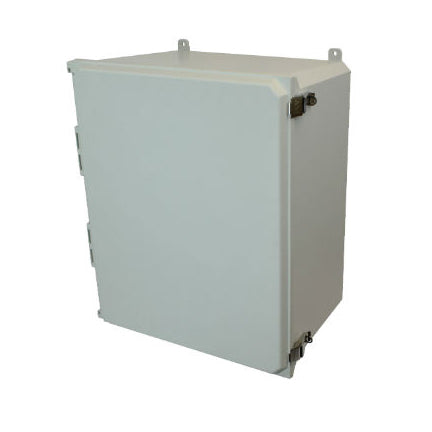

20x16x10 NEMA 4X Fiberglass Enclosure Quick-Release Latch Hinged Cover Foot Mount

Shipping calculated at checkout.
Request a Quote

Description
Features a quick release latch hinged cover. This enclosure is part of Allied Moulded's AMU series. This enclosure is part of Allied's AMU ULTRALINE series, developed for OEM applications. Flange mount pattern retrofits competition. Features a tongue and groove neoprene gasket that is encased in a continuous channel.

Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU2060L
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 20 inch
Standard Weight (lbs): 15
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339963042
