SKU:
AMU2060TW

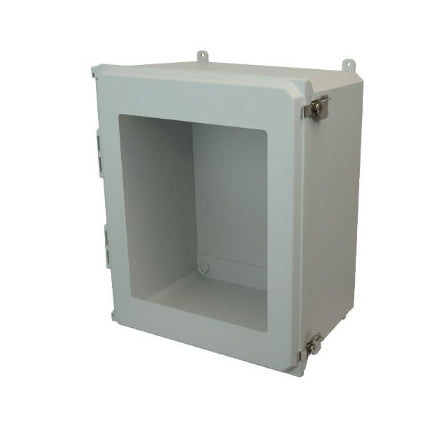

20x16x10 NEMA 4X Fiberglass Enclosure Twist Latch Hinged Cover Window Foot Mount
AMU Fiberglass Enclosure Twist Latch Hinged Cover Window - Part: AMU2060TW
Shipping calculated at checkout.
20x16x10 NEMA 4X Fiberglass Enclosure Twist Latch Hinged Cover Window Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
20x16x10 NEMA 4X Fiberglass Enclosure Twist Latch Hinged Cover Wind...
$0.00
Unit price
/
Unavailable
Description
Description
Protect electrical equipment like controls, instrumentation, and more from the elements. Optional accessories include hole plugs, vent kits, pole mount kits and more. Features a twist latch hinged cover. Ultraline enclosures have patented multi-mounting capability, great for a multitude of equipment manufacturer and industrial applications. This enclosure is part of Allied Moulded's AMU series.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU2060TW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 20 inch
Standard Weight (lbs): 15
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339963073
