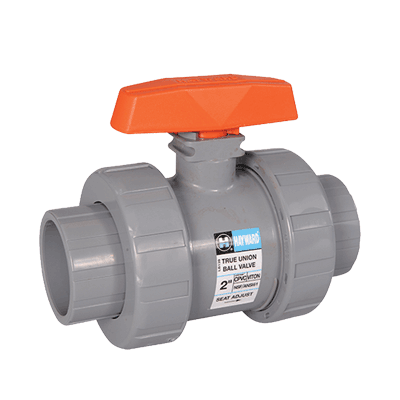

4" Hayward Series TB True Union Ball Valve, Socket End Connections, CPVC Body, FPM O-Rings, PTFE Seats, 235 psi @ 70 &#176F

Hayward series TB true union ball valves are offered in PVC 1/4" to 6" sizes, CPVC 1/2" to 6" sizes and glass filled polypropylene in 1/2" to 2" sizes. Series TB carries the industries' highest pressure rating of 235 psi in sizes 1/4" to 4" and their full port design allows for greater flow rates and higher Cv values. PVC and CPVC valves are NSF/ANSI 61 Listed. O-rings are either FPM or EPDM and the seats are reversible/reusable PTFE. Options for TB series valves include: lockouts, 2" square operating nut, stem extensions, pneumatic and electric actuators and a spring return handle.

TB series valves are ideal for the following applications:

• Water/wastewater treatment
• Chemical Processing
• Food/Beverage
• Swimming pools/water parks
• Aquaculture
• Aquarium/zoo service
• Pharmaceutical
• Pulp/paper
• Landfill service
• Marine/corrosive environments
• Metal finishing/plating

• NSF/ANSI 61 Listed
• Full port design
• PVC/CPVC/GFPP
• Reversible PTFE seats
• Double O-Ring stem seals
• Easy to service
• Automation available
