SKU:
AMU664CCT

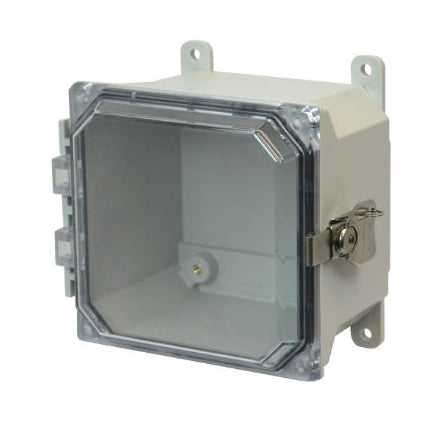

6x6x4 NEMA 4X Fiberglass Enclosure Twist Latch Clear Hinged Cover Foot Mount
Shipping calculated at checkout.
6x6x4 NEMA 4X Fiberglass Enclosure Twist Latch Clear Hinged Cover Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
6x6x4 NEMA 4X Fiberglass Enclosure Twist Latch Clear Hinged Cover F...
$101.26
Unit price
/
Unavailable
Description
Description
Made of fiberglass reinforced polyester, this enclosure is NEMA 4X rated. Unlike metal enclosures, this box is corrosion resistant, lightweight, easy to modify, and affordable. Features a tongue and groove neoprene gasket that is encased in a continuous channel. This enclosure is part of Allied Moulded's AMU series. Features a twist latch hinged cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU664CCT
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 6 inch
Standard Weight (lbs): 3
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339958093
