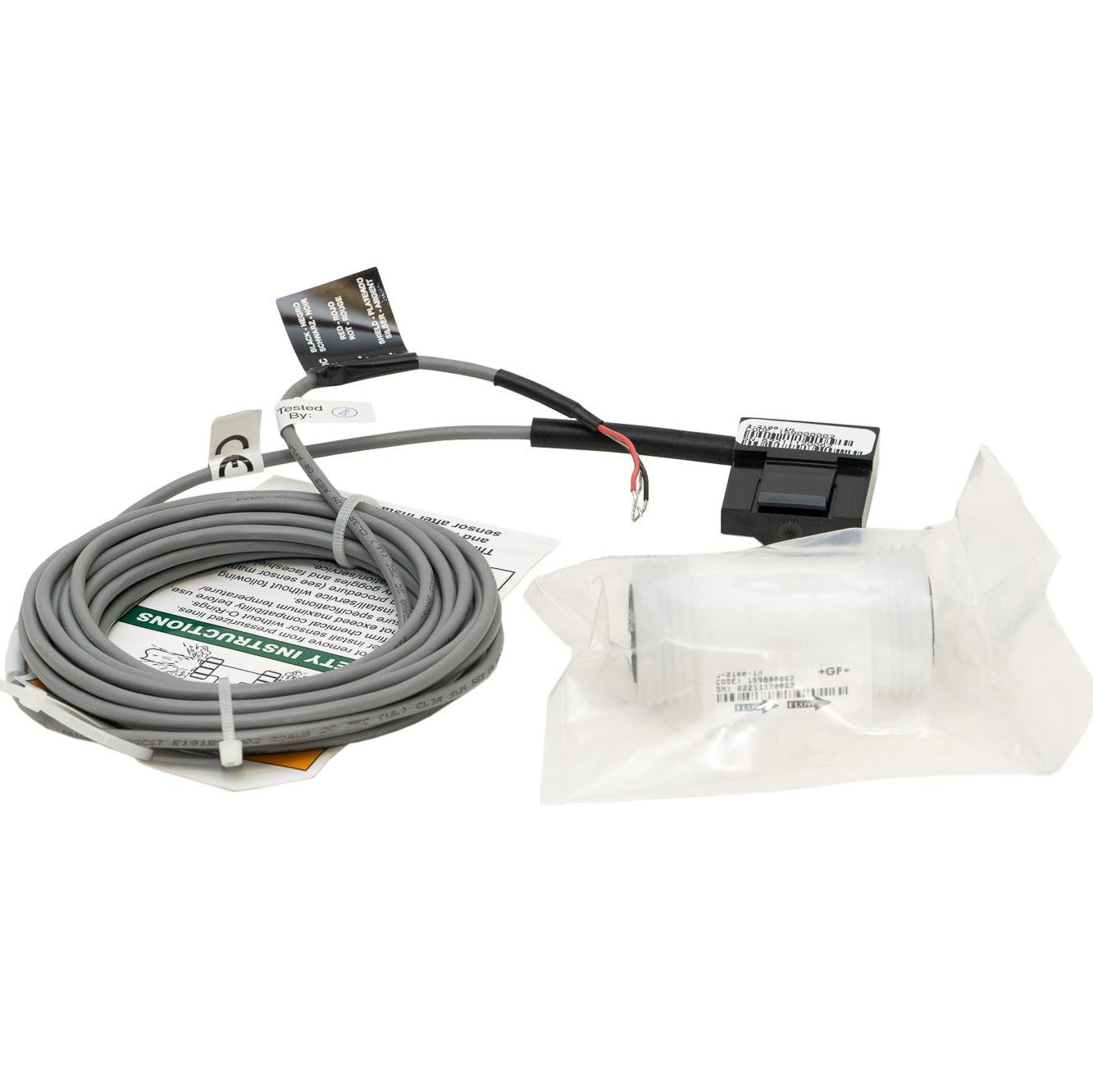

GF Signet 3-2100-1H Type 2100 Turbine Flow Sensor, 0.8-10 GPM, PVDF Body, Viton Elastomers

Engineered specifically for small diameter applications, the Signet 2100 Turbine Flow Sensor provides accurate readings in two flow ranges; 0.3 to 3.8 lpm and 3 to 38 lpm (0.1 to 1 gpm and 0.8 to 10 gpm). The injection-molded PVDF body and ceramic bearings provide excellent chemical compatibility and long service in dosing and batching applications. Union piping and tubing connections along with removable NEMA 4X electronics allow for easy assembly and field replaceability. The Signet 2100 can be used with DN8 (1/4 in.), DN10 (3/8 in.), or DN15 (1/2 in.) tubing, or DN15 (1/2 in.) piping for simple installation. End connections are available in PVDF for hose barbs, fusion socket or IR/butt fusion, and in PVC for socket or NPT thread.

Typical applications:

• Chemical Addition
• Textile dyeing
• High-purity Chemical Dispensing
• Water Addition
• Fertigation
• Dosing
• Pump Protection
• Not suitable for gases

• Installs into pipe sizes: 0.5 in, DN15 Hose size: DN8, 1/4 in., DN10, 3/8 in., DN15, 0.5 in.
• Operating range 0.38 to 38 lpm, 0.8 to10 gpm
• Max Pressure rating:16 bar @ 20°C, 232 psi @ 68°F
• Power source: 5 to 24 VDC, 1.5mA max
• Compatibility: 8550, 8900, 9900, 9900-1BC
• *End connector kits must be ordered separately.
• -H version can be used with fl are fi tting. Flow range: 3 - 27 lpm
