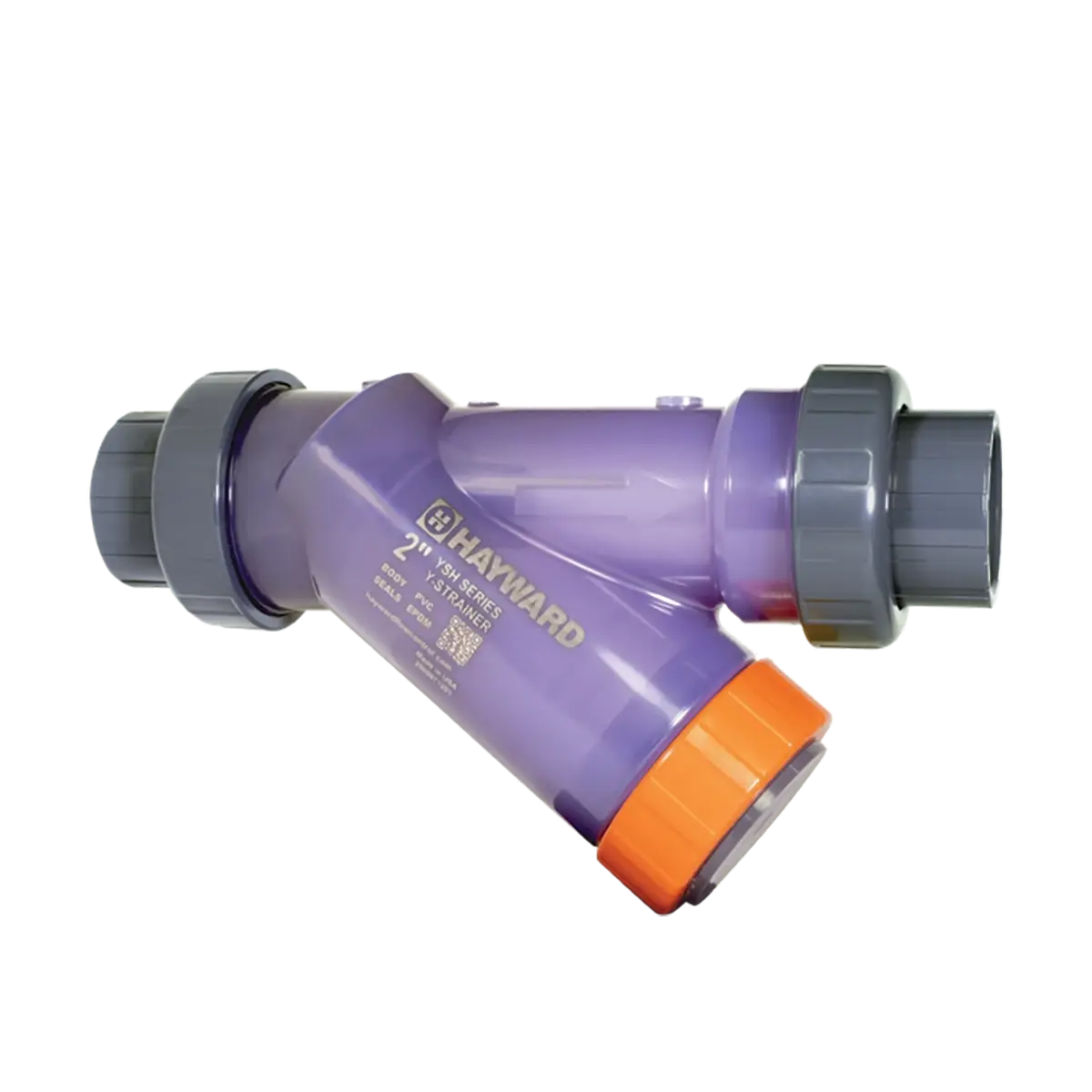

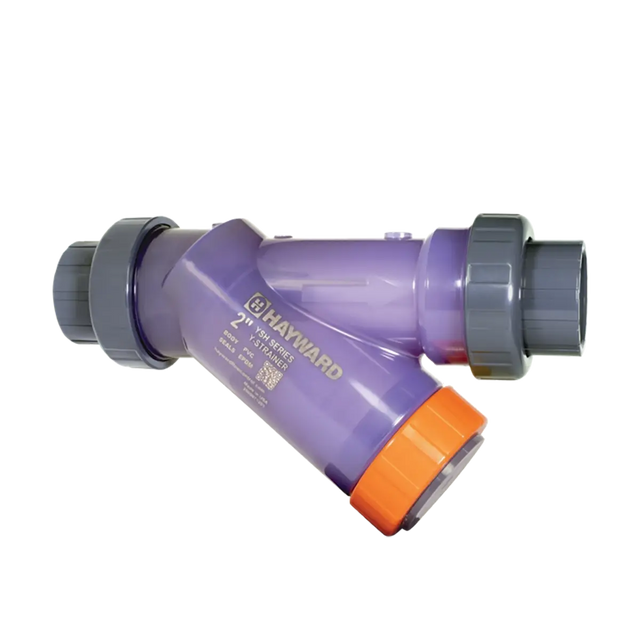

YSH Series 1" Clear PVC Y-Strainer True Union Flanged Ends, EPDM Seal
The Hayward YSH Series 1" Y-Strainer is built from Clear PVC (Clear PVC Cell Class 12454 per ASTM D1784) and features True Union Flanged end connections with PVC end connection material with a reliable EPDM o-ring seal.
- Pipe Size: 1"
- Body Material: Clear PVC
- Basket/Screen Material: PVC
- End Connection: True Union Flanged
- Sealing Material: EPDM
- Cv Coefficient: 9.0
- Pressure Rating: 150 PSI @ 70 °F
- Available Screen Perforations: 1/16", 1/32", 1/8", 3/16"
Designed with new safety features including exterior buttress threads and a pressure-relieving chamfered barrel nut. Optional hex cap for fast screen access, pre-drilled cap taps for blow-out or gauge ports, and clear PVC screens for quick visual inspection. Installs horizontally or vertically. Optional mesh screens from 20 to 325 mesh available in stainless steel, PVDF, Hastelloy, titanium, and Monel.
Additional Info
YSH Series 1" Clear PVC Y-Strainer True Union Flanged Ends, EPDM Seal
YSH Series 1" Clear PVC Y-Strainer True Union Flanged Ends, EPDM Seal - 1/32" is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
YSH Series 1" Clear PVC Y-Strainer True Union Flanged Ends, EP...
Description
Description
The Hayward YSH Series 1" Y-Strainer is built from Clear PVC (Clear PVC Cell Class 12454 per ASTM D1784) and features True Union Flanged end connections with PVC end connection material with a reliable EPDM o-ring seal.
- Pipe Size: 1"
- Body Material: Clear PVC
- Basket/Screen Material: PVC
- End Connection: True Union Flanged
- Sealing Material: EPDM
- Cv Coefficient: 9.0
- Pressure Rating: 150 PSI @ 70 °F
- Available Screen Perforations: 1/16", 1/32", 1/8", 3/16"
Designed with new safety features including exterior buttress threads and a pressure-relieving chamfered barrel nut. Optional hex cap for fast screen access, pre-drilled cap taps for blow-out or gauge ports, and clear PVC screens for quick visual inspection. Installs horizontally or vertically. Optional mesh screens from 20 to 325 mesh available in stainless steel, PVDF, Hastelloy, titanium, and Monel.
