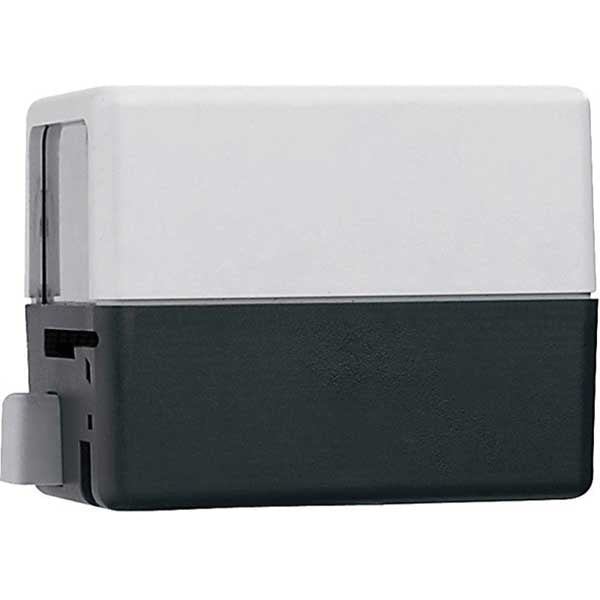

Z1 NC Actuator, 24V, 18" Wires (Z121000)

Z1 NC actuator (no switch) fits on Z2 and Z3 series valve bodies with the push of a button. Two position spring return normally closed. 7/8" knockout for 1/2" conduit connector. We carry this and many other sizes. Don't see the part you need? Give us a call today!

Power: 24, 120, 208, 230 & 277 VAC.,

Power consumption: 5 W, 7 VA.

Conduct connector size: 1/2"

Rating of auxiliary switch contacts: 24 VAC: 0.0 A min, 0.4 A max (24 V). 120-277 and Z111900 VAC: 0.25 A min, 5.0 A max (230 V). UL873, cULus Listed & CE. UL 1995 sec.18 air plenums and ducts. US Patent 7,048,251.

SKU: Z121000
